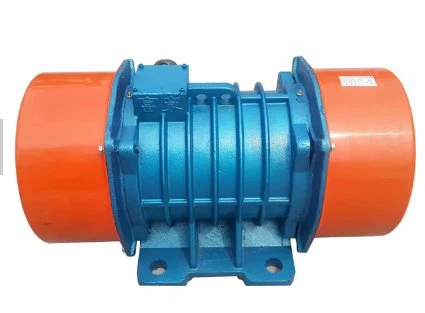

3 phase 380v 220v industrial small Vibration Motor
YZS vibration motor is a new type of vibration motor newly developed by Xiyangyang Company. The whole machine is cast in one shell and frame, which enhances the sealing performance of the whole machine. It can be widely used in non-explosion-proof working environment of multi-dust and Multi-granular materials. YZS vibration motor is characterized by beautiful appearance, high cost performance and excellent performance.
model number | Exciting force (N) | Rated power (KW) | Rated current (A) | Synchronous speed (rmp) | install size(mm) | Outline size(mm) | |||||||
| A | B | H | K | AB | BB | HD | G | L | |||||
| YZS-1.5-2 | 1500 | 0.12 | 0.36 | 3000 | 130 | 80 | 80 | 12 | 170 | 118 | 200 | 19 | 245 |
| YZS-2.5-2 | 2500 | 0.22 | 0.6 | 130 | 80 | 80 | 12 | 170 | 118 | 200 | 19 | 245 | |
| YZS-3-2 | 3000 | 0.25 | 0.6 | 150 | 90 | 90 | 14 | 185 | 124 | 220 | 21 | 270 | |
| YZS-5-2 | 5000 | 0.37 | 0.9 | 150 | 90 | 90 | 14 | 185 | 124 | 220 | 21 | 270 | |
| YZS-10-2 | 10000 | 0.75 | 1.75 | 180 | 110 | 112 | 18 | 225 | 155 | 238 | 27 | 335 | |
| YZS-15-2 | 15000 | 1.1 | 2.3 | 220 | 140 | 125 | 22 | 272 | 190 | 265 | 32 | 385 | |
| YZS-20-2 | 15000 | 1.5 | 3.1 | 260 | 150 | 170 | 26 | 344 | 234 | 320 | 42 | 452 | |
| YZS-30-2 | 30000 | 2.2 | 4.8 | 310 | 170 | 170 | 33 | 400 | 270 | 365 | 57 | 505 | |
