BASIC INFORMATION
1.Rubber vibration isolator is mainly used for Fitness equipment, air conditioning, bicycle,air compressors, engineers, gasoline engines, water pumps ,Welding machine and other equipment as a damping element, in order to the body normal work and get good surroundings, damping noise reduction and the effect is obvious.
2.Easy installation, reliable performance.Metal and rubber materials are treated with special processes for strong adhesion and long service life.
3.The rubber has large elasticity and is light and high, which plays a good buffering role and can protect the machine well.
PARAMETERS
Specification | Rubber Diameter | Rubber Height | Screw Type | Screw Length |
10X10 M4X8 | 10MM | 10MM | M4 | 8MM |
15X10 M4X12 | 15MM | 10MM | M4 | 12MM |
15X15 M4X10 | 15MM | 15MM | M4 | 10MM |
15*10 M5*12 | 15MM | 10MM | M5 | 12MMM |
15*15 M5*10 | 15MM | 15MM | M5 | 10MM |
15*20 M5*12 | 15MM | 20MM | M5 | 12MM |
20*15 M5*15 | 20MM | 15MM | M5 | 15MM |
18*8 M6*16 | 18MM | 8MM | M6 | 16MM |
20*15 M6*16 | 20MM | 15MM | M6 | 16MM |
20*20 M6*18 | 20MM | 20MM | M6 | 18MM |
20*25 M6*18 | 20MM | 25MM | M6 | 18MM |
25*15 M6*18 | 25MM | 15MM | M6 | 18MM |
25*17 M6*18 | 25MM | 17MM | M6 | 18MM |
25*15 M8*20 | 25MM | 15MM | M8 | 20MM |
25*25 M8*20 | 25MM | 25MM | M8 | 20MM |
30*10 M8*20 | 30MM | 10MM | M8 | 20MM |
30*15 M8*23 | 30MM | 15MM | M8 | 23MM |
30*20 M8*23 | 30MM | 20MM | M8 | 20MM |
50*20 M10*28 | 50MM | 20MM | M10 | 28MM |
50*30 M10*28 | 50MM | 30MM | M10 | 28MM |
50*50 M10*28 | 50MM | 50MM | M10 | 28MM |
60*40 M12*37 | 60MM | 40MM | M12 | 37MM |
75*55 M12*37 | 75MM | 55MM | M12 | 37MM |
INSTALLATION DIAGRAM

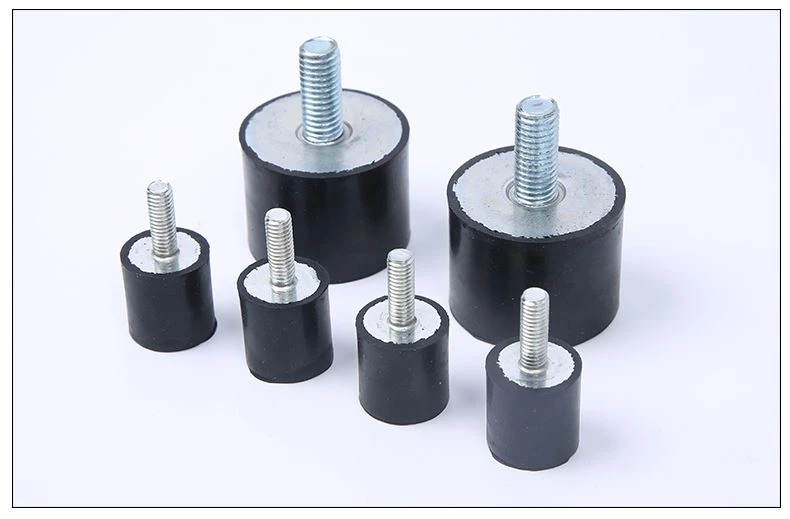

PRODUCT SHOW
