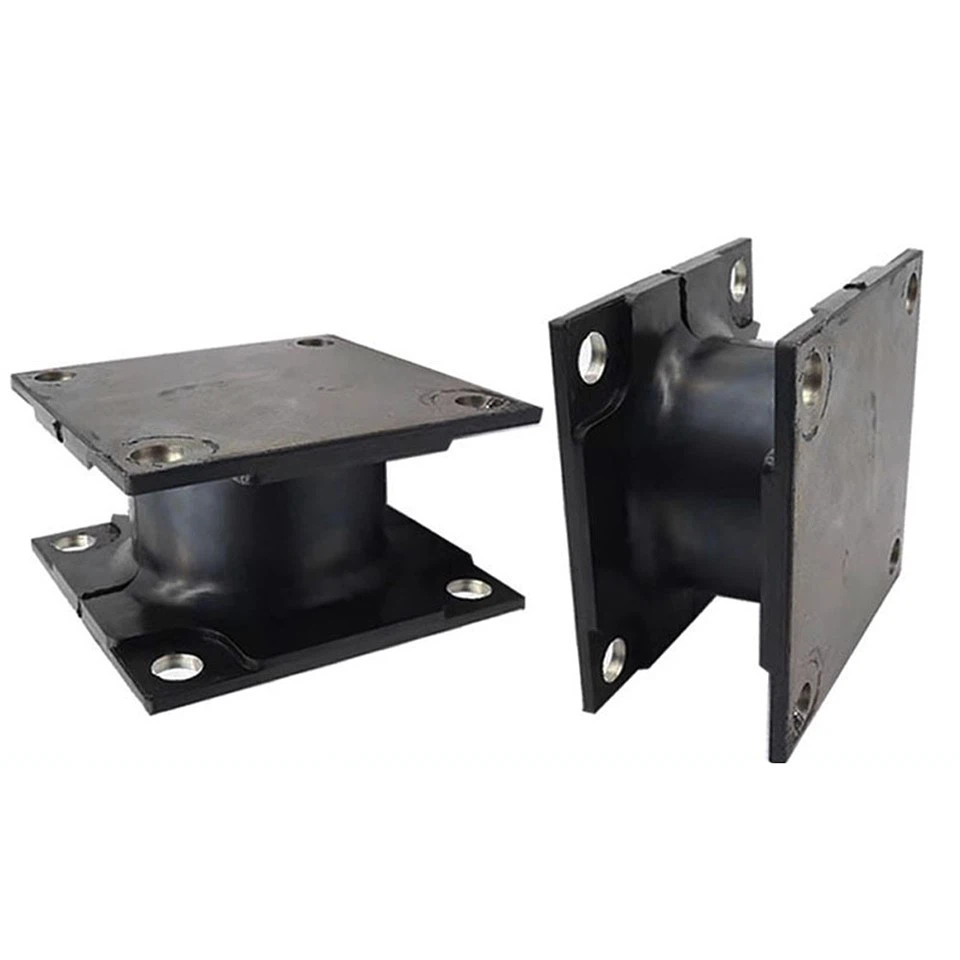

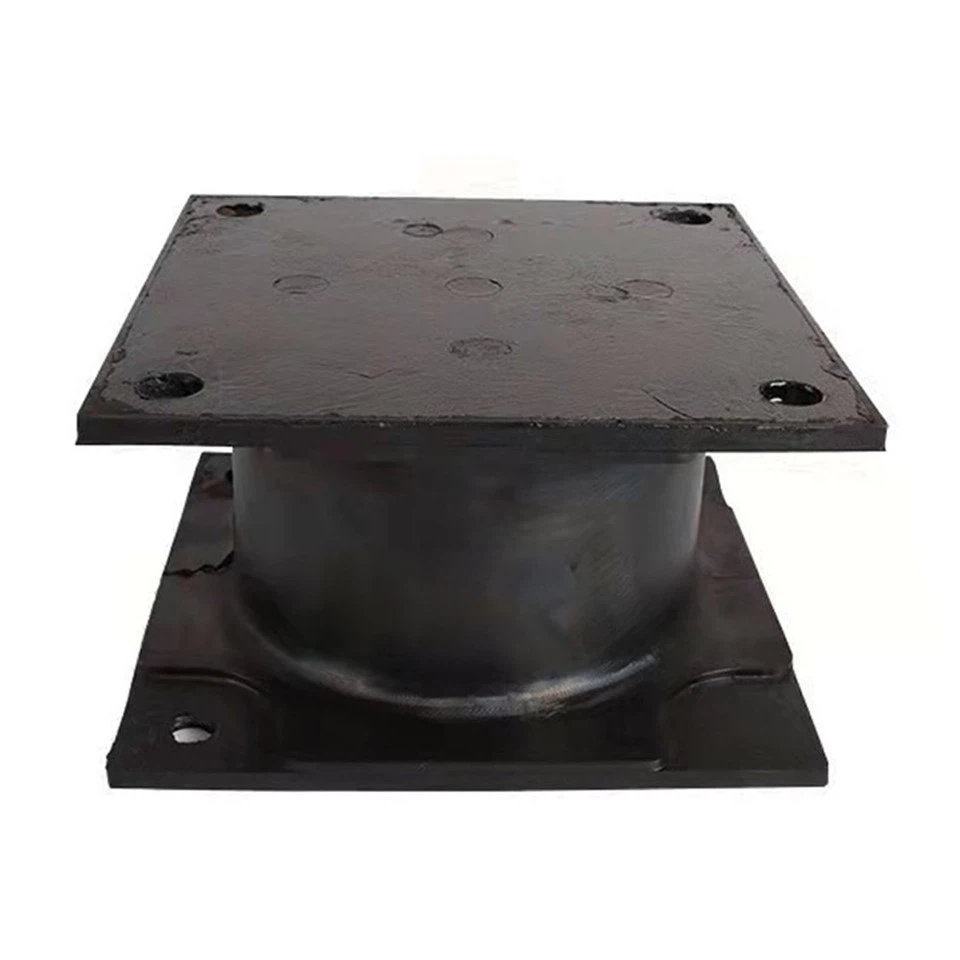

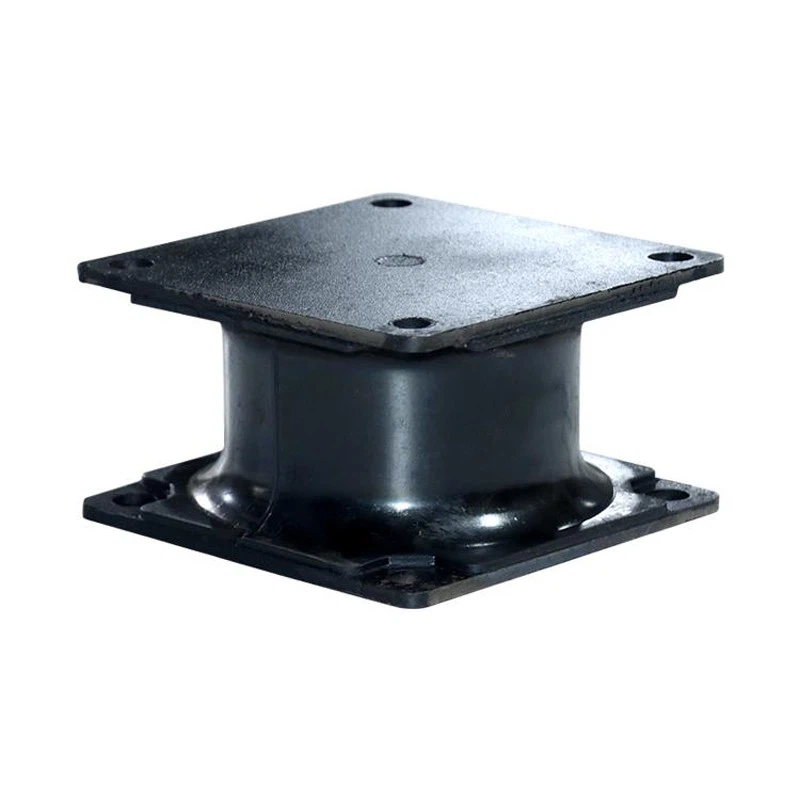

Shock absorber is a damping device of rubber and can not avoid vibration, It can only try best to reduce shock mitigation, rollers rubber buffer is made from natuarl rubber and iron plates. According to the different size and making different hardness rubber buffer, and thus not need shake the device part played damping effect.
Our Shock Absorber is used 100% Thailand natural Rubber
We can offer shock absorber with various specification.
|
Applicable machines |
BW100 (drive), BW120, BW120 (drive), |
|
Materials |
Natural rubber |
|
Specifications |
Quick-wear parts |
|
Installation position |
Be used in working time that not need vibration rubber block suspension part for Vibratory Roller |
|
MACHINE |
BRAND |
MACHINE TYPE |
|
ROAD ROLLER |
BOMAG |
BW202AD-2 |
|
BW202AHD-2 |
||
|
BW203AD-4 |
||
|
BW219D-4 |
||
|
BW219DH-3 |
||
|
BW225D-3 |
||
|
BW226DH-4 |
||
|
BW24R |
||
|
BW80AD-2 |
||
|
HAMM |
HD120 |
|
|
HD130 |
||
|
HD138 |
||
|
DYNAPAC |
CC422 |
|
|
CC522 |
||
|
CC622 |
||
|
CC524 |
||
|
CC624 |

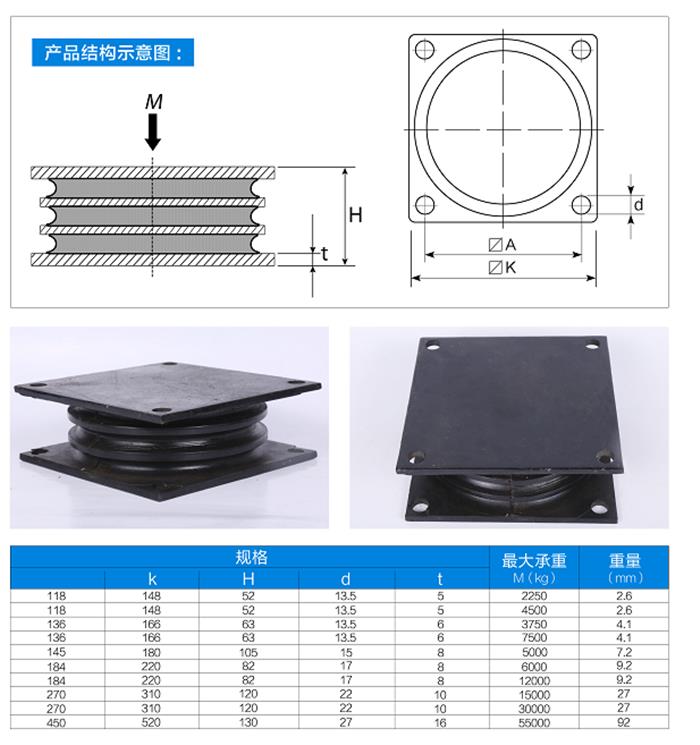

The rubber shear spring adopts a high-quality natural rubber and steel plate sandwich composite structure, which is formed by high-temperature vulcanization. The internal embedded bimetallic installation claw plate is reinforced by a safety steel wire ring, and both ends are equipped with positioning pin fixing devices, forming an optimized combination of "rubber elastic body+metal support structure". Core technical parameters benchmark against international standards:
The working temperature range covers -5 ℃ to+50 ℃, and the stiffness fluctuation is controlled within a reasonable range when the temperature changes, suitable for use in multiple climatic environments;
Damping ratio C/Cc>0.07, natural frequency 5-14Hz, can achieve efficient vibration absorption and resonance suppression, and the vibration reduction efficiency is increased by more than 40% compared to traditional metal springs;
The bearing capacity span is wide, with a rated load of 5-1920kg, corresponding stiffness of 20-650kf/cm ², and deformation of 2-24mm, which can meet the diverse needs of light load instruments to heavy-duty construction machinery;
The product size covers a full range of specifications from 80 × 80 × 30mm to 290 × 260 × 133mm, and supports customized personalized products with special shapes and performance parameters according to customer needs.
OUR SERVICE
1. We have professional QC team to ensure your product more better.
2. Test and check the raw material before production.
3. After sending, we will track the goods once every two days.If you have any question,contact with us and we will offer solve way for you after you received the goods.
4. Keep secret to your design and idea.
5. Warranty: one year.
CERTIFICATE
Passed the ISO9001,SGS and ROHS certification.
